3838 100W 200-300W 1800mA 3600mA 5400mA 54-58V CRI 95+ LED COB Chip for Photoflood Light

  • 1
  • 2
  • 3

Brand Name : Learnew

Model Number : LN-CAS38XW-P100-30/LN-CAS38XW-P100-30

Certification : CE,SGS,ROHS

Place of Origin : China

MOQ : 5000-10000

Price : US$6.20/PCS-US$13.0/PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 3000000PCS/Month

Delivery Time : 7-31

Packaging Details : Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.

Power : 100W/200-300W

CCT : WW:2700-3000K/NW:4000-4500K/PW:5000-6000K

Luminous Flux : 100-120LM/W

VF : 54-58V

IF : 1800mA/3600mA/5400mA

Substrate : MIRROR ALU

Contact Now

3838 100W 200-300W 1800mA 3600mA 5400mA 54-58V CRI 95+ LED COB Chip for LED Photoflood Light

Power 100W/200-300W
CCT WW:2700-3000K/NW:4000-4500K/PW:5000-6000K
Luminous Flux 100-120LM/W
VF 54-58V
IF 1800mA/3600mA/5400mA
Circuit 18S18P/18S32P
Whole Size 38*38MM
Lens Size R30MM
View Angle 120°
CRI >95
Substrate MIRROR ALU
Design Advantage 1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 95/98
6,High efficiency 100lm/w+
7,High standard raw materials proovide
Appilication 1,LED Movie Light
2,LED Photoflood Light
3,LED Scene Light
4,LED Supplement Light

Good quality and low life decay 3838 100W 200-300W 1800mA 3600mA 5400mA 54-58V CRI 95+ LED COB Chip, LN-CAS38XW-P100-30 is 100W and LN-CAS38XW-P100-30 is 200-300W. The Color temperature we ca do WW:2700-3000K/NW:4000-4500K/PW:5000-6000K.

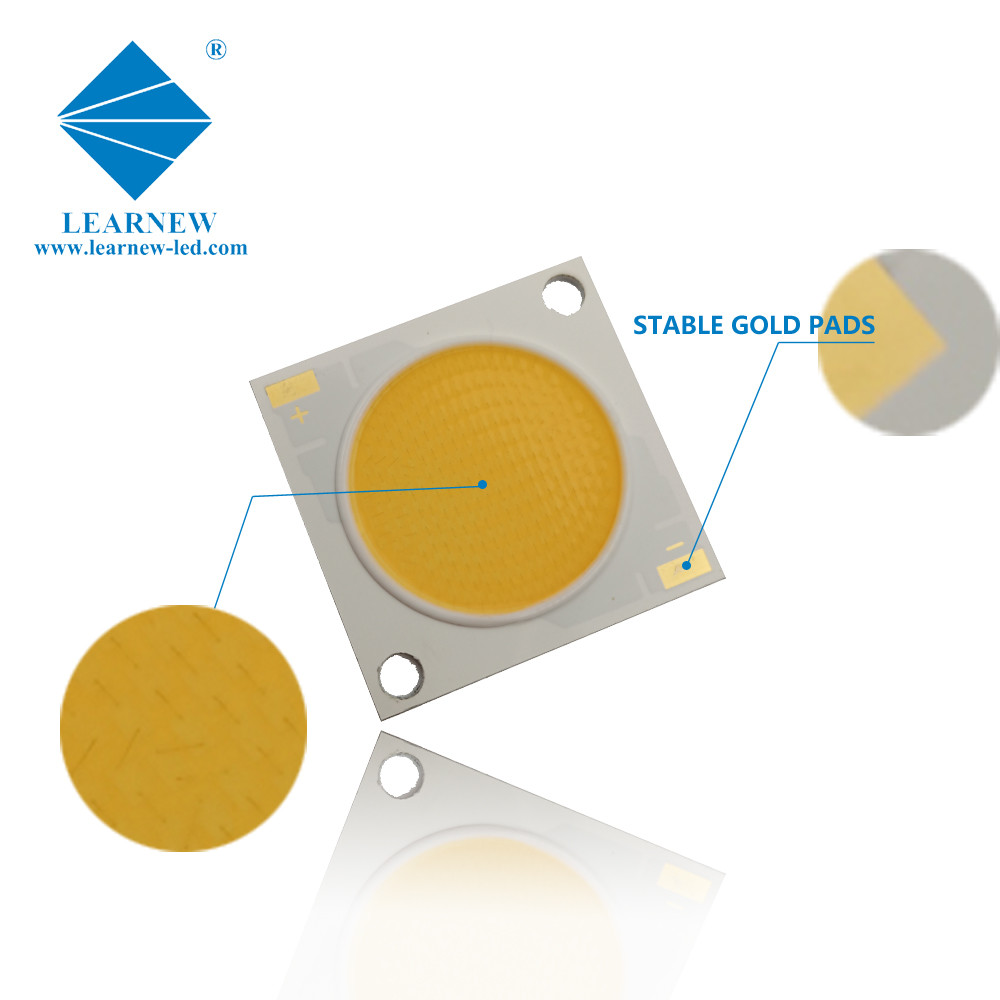

The COB Chip whole is 38*38MM, and the lens size is R30MM. This model view angle is 120°,and CRI is about 95+, the substrate we use MIRROR ALU.

And we also support customized service.

3838 100W 200-300W 1800mA 3600mA 5400mA 54-58V CRI 95+ LED COB Chip for Photoflood Light3838 100W 200-300W 1800mA 3600mA 5400mA 54-58V CRI 95+ LED COB Chip for Photoflood Light3838 100W 200-300W 1800mA 3600mA 5400mA 54-58V CRI 95+ LED COB Chip for Photoflood Light
